LiTime 48V 30Ah Golf Cart Lithium Battery Bluetooth 100A BMS 5.12kW Power GC2 LiFePO4 Battery

Upgraded to GC2 size，LiTime 48V(51.2V) 30Ah GC2 Golf Cart Smart LiFePO4 Lithium Battery with Bluetooth is designed for most golf carts. The upgraded low-temperature cut-off function ensures safe use in low temperature and any environment. LiTime 48V(51.2V) 30Ah GC2 Golf Carts LiFePO4 Battery with 1536Wh Energy, 3000W Continuous Output Power for Golf Cart, it has a full charge range of about 20-25 miles for one battery (Max 8 in Parallel for Max.12.288kWh Energy). LiTime 48V(51.2V) 30Ah GC2 LiFePO4 battery can be used in golf carts (Club Car, EZGO, ICON, Yamaha) and LSV, ATV, NEV, E-trike (≤35km/h)

BATTERY

1. Cell Type：LiFePO4 Cylindrical
2. Warranty：5 Years
3. Cycle Life：4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
4. Nominal Voltage：51.2V
5. Rated Capacity：30Ah
6. Energy：1536Wh
7. Max. Expansion (Parallel & Series)：8P
8. Internal Resistance：≤40mΩ
9. Certifications：UL, FCC, CE, RoHS, UN38.3

BMS

1. BMS：100A
2. Max. Continuous Output Power：
3. For Electric Cart: 3000W;
4. For Energy Storage: 4096W
5. Max. Continuous Charge Current：30A
6. Max. Continuous Discharge Current：80A
7. Max. Discharge Current 1 Second：300A

CHARGE

1. Charge Method：CC/CV
2. Charge Voltage：57.6V ± 0.8V
3. Recommend Charge Current：6A (0.2C)

TEMPERATURE

1. Charge Temperature：0℃ to 50℃ / 32℉ to 122℉
2. Discharge Temperature：-20℃ to 60℃ / -4℉ to 140℉
3. Storage Temperature：-10℃ to 50℃ / 14℉ to 122℉
4. Low-Temperature Protection：Yes (32℉/0℃)
5. Low-Temperature Charging Protection Auto Recovery：Yes (41℉/5℃)

OTHERS

1. Terminals：M8 bolts

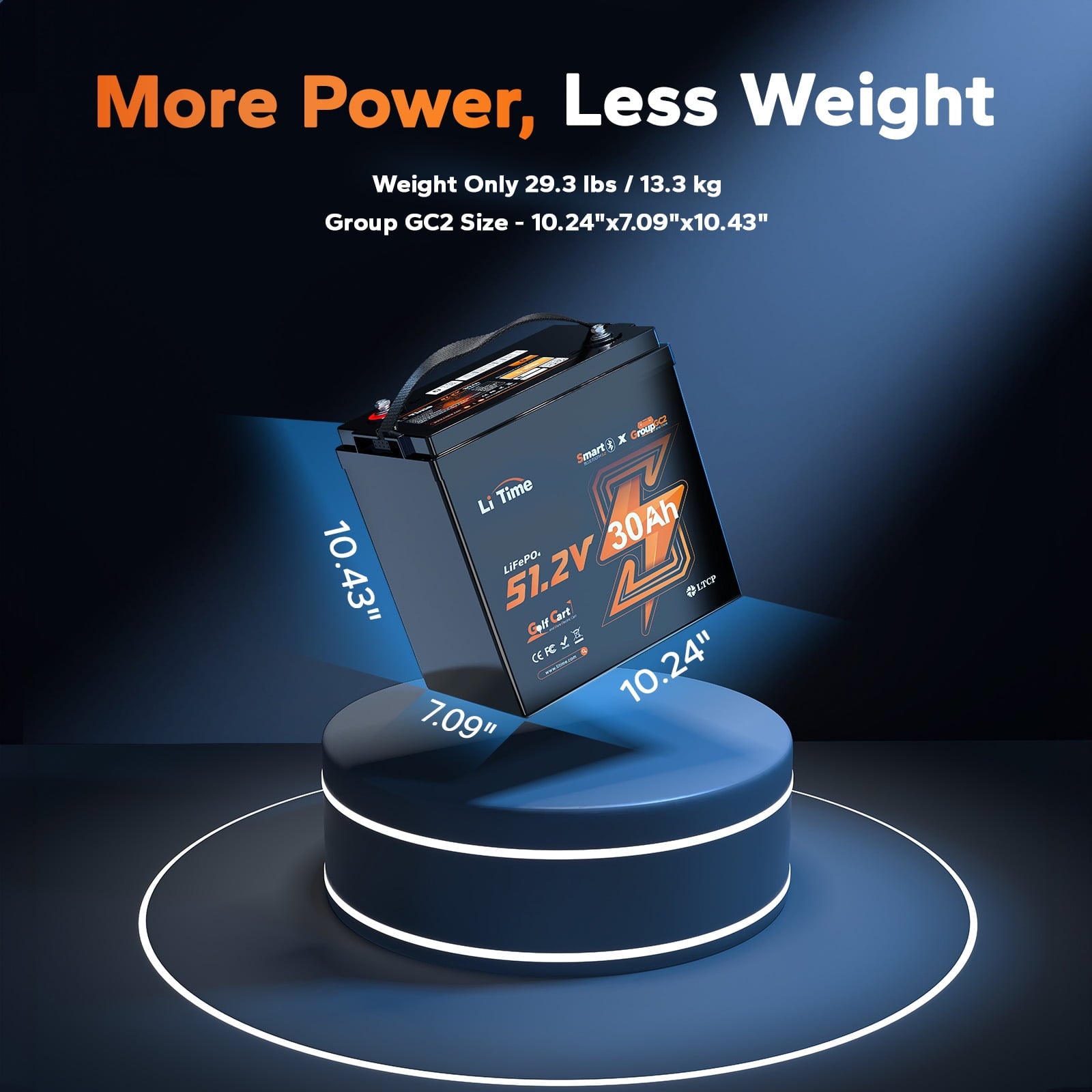

2. Size：L10.24*W7.09*H10.43 inch
3. Housing Material：ABS (Flame Retardant Plastic)
4. Protection Class：IP65

TIPS

1. LiTime lithium battery can be charged via a LiFePO4 charger, solar panel or generator, making it easy and convenient to use. Its 1C charging efficiency makes it fully charged in about 1 hour at the fastest (10X of the lead-acid battery). Without the memory effect, you can charge it partially or fully anytime.
2. Please use a 58.4V lithium charger to charge the batteries, other types of chargers may cause damage to the batteries due to different charging stages and modes. If you have related problems, please feel free to contact us.

• 【Born for Golf Carts】LiTime 48V 30Ah Golf Cart Smart LiFePO4 Lithium Battery with Bluetooth is designed for golf carts. This product is upgraded to GC2 size, perfect fit for most golf carts. Also it uses Automotive A+ Grade Steel Case Cylindrical Cells (support 2.67C continuous discharge current), which is more uniform in force area, faster charging and better heat dissipation than similar square cell lithium batteries. It can support a high discharge current of 300A (1s), with low internal resistance, to making the golf cart more powerful. Suitable for golf carts (Club Car, EZGO, ICON, Yamaha) and LSV, ATV, NEV, E-trike (≤35km/h)

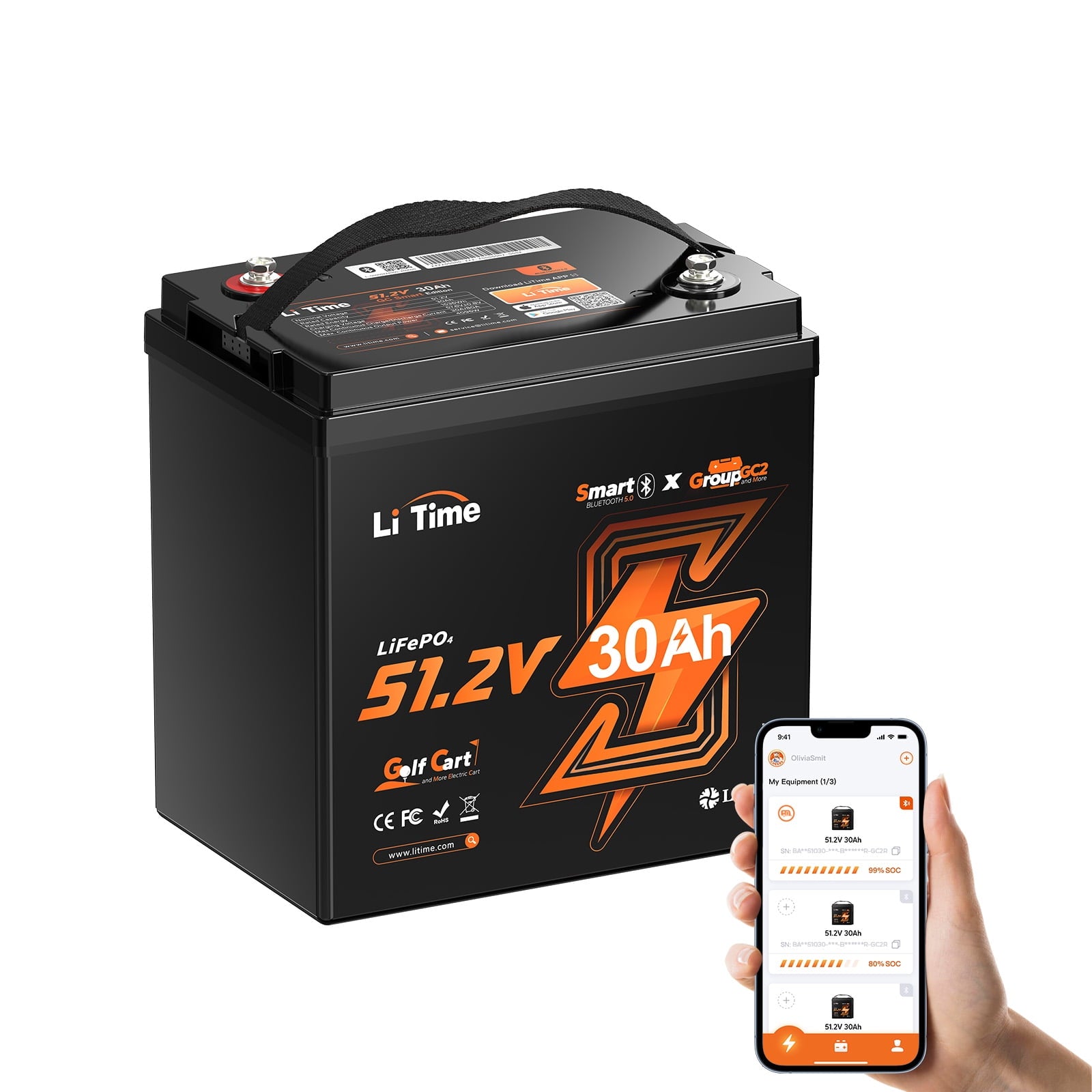

• 【Smart Bluetooth BMS & Low-Temp Protection】LiTime 48V 30Ah Golf Cart LiFePO4 Lithium Battery with Bluetooth and Low-Temp Potection is built-in upgraded smart BMS, accessed Bluetooth 5.0 module, Bluetooth function allows you to monitor the battery information in real time through LiTime APP, and easily cope with all kinds of environments and situations at anytime, anywhere. Moreover, the smart BMS can prevent the battery from over-charging, over-discharging, over-current, high temperature and short-circuit, and upgraded low-temperature cut-off function ensures safe use in low temperature and any environment.

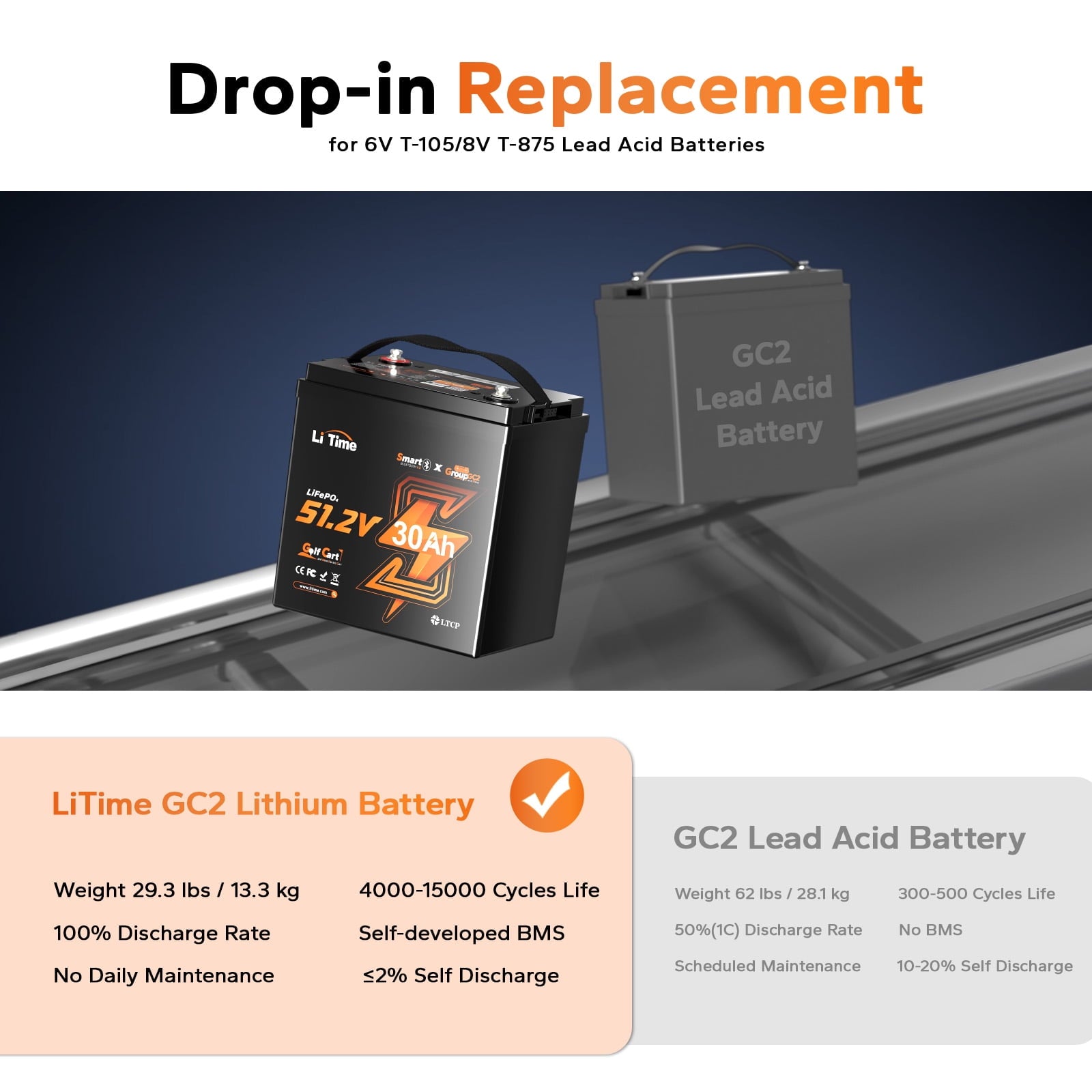

• 【Perfect Replacement for Lead-acid Batteries】 LiTime 48V 30Ah Golf Cart LiFePO4 Battery is in BCI GC2 size can completely replace GC2 6V/8V lead-acid batteries and the LiFePO4 battery is lighter than lead-acid batteries, with 3-5 times higher energy density, improving golf cart handling and performance. Also with a maximum of 15,000 cycles and a 10-year lifespan, they last 3-4 times longer than typical lead-acid batteries, which means fewer replacements and cost savings. And lithium iron phosphate batteries do not contain mercury, lead, or any other hazardous substances, are environmentally friendly and completely maintenance-free, and do not require the addition of water.
• 【High Performance, Low Energy Consumption】 LiTime 48V 30Ah GC2 Golf Carts LiFePO4 Battery with 1536Wh Energy, 3000W Continuous Output Power for Golf Cart, it has a full charge range of about 20-25 miles for one battery (Max 8 in Parallel for Max.12.288kWh Energy). The reduced size and weight improves the handling and performance of the golf cart and reduces the wear and tear of the vehicle's tires, dampers, brakes and other parts. So It has a longer range and significantly increases the speed and torque of the golf cart. And has excellent self-discharge rate (Monthly self-discharge rate of lithium batteries is only 3%, while lead-acid batteries have a monthly self-discharge rate of 15-30%)
• 【5 Year Warranty & Customer Service】 LiTime golf cart batteries come with a 5-year warranty! We also provide professional technical support and online customer service with fast feedback within 24 hours. If you have any product related issues or questions, please contact us directly, Li Time support team is always here for you.
